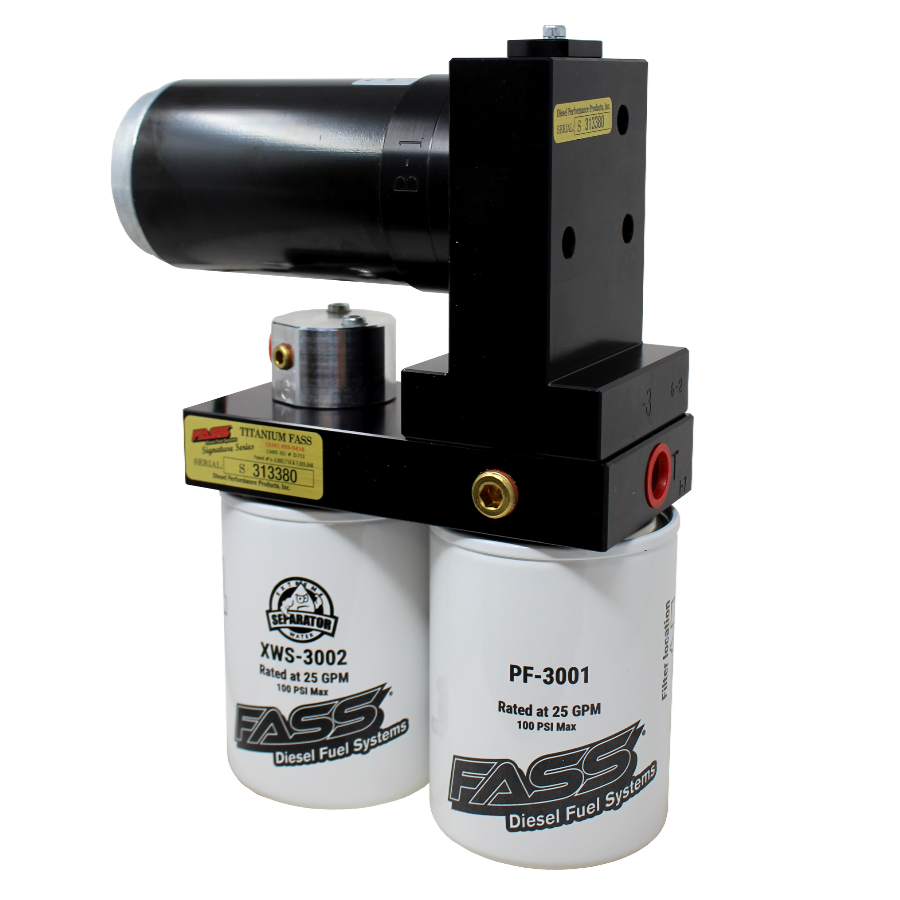

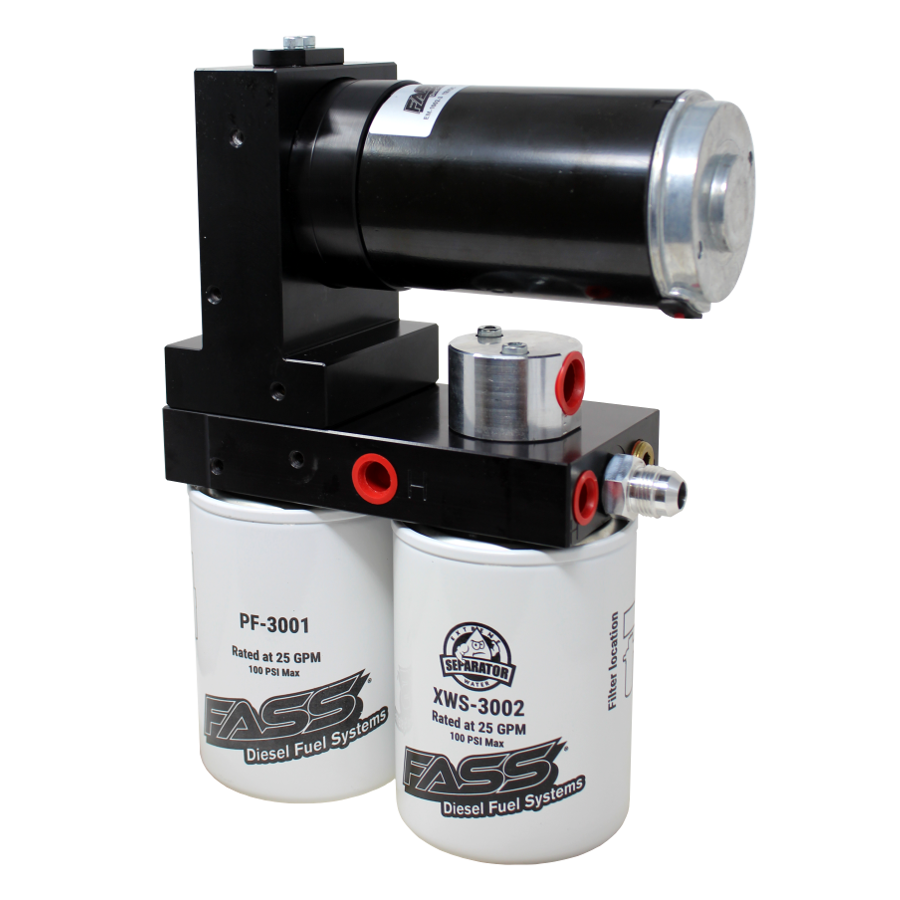

FASS FUEL SYSTEM TITANIUM SIGNATURE SERIES DIESEL FUEL LIFT PUMP 250GPH (TS 250G)

If you’re looking to upgrade your fuel system with cleaner fuel delivery and dependable performance, the FASS Titanium Signature Series 250GPH Fuel Lift Pump (TS 250G) is one of the most trusted aftermarket fuel systems in the diesel industry.

Engineered by FASS Fuel Systems for heavy-duty diesel applications, the Titanium Signature Series delivers 250 gallons per hour of fuel flow while removing harmful contaminants that can damage injection systems. With 2-micron filtration, built-in water separation, and patented air/vapor removal technology, this system ensures your engine receives clean, air-free fuel every time you hit the throttle.

By eliminating water, debris, air, and vapor from diesel fuel, the TS 250G helps protect and extend the life of your injectors, improve engine efficiency, and deliver a smoother running engine. It also helps support engines running performance upgrades by providing consistent fuel delivery under heavy load.

Backed by a 1 Million Mile / 5 Year Warranty, the Titanium Signature Series is designed to be one of the longest lasting and most reliable aftermarket filtration systems available.

Available For

CAT, Cummins, Detroit, Mercedes, Paccar, and Volvo Engines

Supported Engine Models

• CAT 3406 Mechanical, 3406A, 3406B, 3406E, C15 Acert, C16

• Cummins M11, N14, ISX, Signature Series

• Detroit DDEC I, II, III, IV

• Detroit DD15 (1st Gen)

• Mercedes MBE-4000

• Paccar MX13, PX7, PX9

• Volvo VED

Key Features

• Preset 16 PSI fuel pressure

• 250 GPH fuel flow rating

• Removes water, air, and debris from diesel fuel

• 2 Micron filtration rating

• ½" fuel lines and ports for improved fuel delivery

• Improves fuel mileage and fuel volume delivery

• Smoother engine idle

• Improved cold weather starts

• Optional electric heater ports

• Optional fuel pressure gauge port

• 30,000 mile filter life expectancy

• Quietest motor on the market

Advanced FASS Technologies

FASS Silencing Technology (FST)
Designed to reduce noise produced by aftermarket lift pumps using radius cuts, tighter tolerances on internal gears, and a military-spec coating on the aluminum base. This results in one of the quietest fuel air separation systems available.

Performance Radius Cuts (PRC)
Advanced machining used to improve fuel flow through the pump housing while preventing air and vapor from re-entering the fuel stream. This ensures smooth fuel delivery and eliminates restriction points.

Mass Flow Return (MFR)
Continuously circulates unused fuel back to the tank after filtration, keeping fuel constantly cleaned, polished, and free of contaminants so the engine always receives the freshest fuel possible.

Important Notes

• Class 8 trucks with stock CAT C16 or Cummins ISX Signature 600 engines require the 250 GPH TS 250G model.

• Unit Injected Mechanical (UIM) systems require an additional oil pressure switch (Part #78143).
  This switch is included in all Titanium UIM kits for proper operation.

Warranty

1 Million Mile / 5 Year Warranty

At Redneck Diesel Performance, we not only supply FASS fuel systems, we also offer professional installation for any and all FASS systems at our shop. Whether you're upgrading for performance or protecting your injectors with cleaner fuel, we can get it installed right so your truck is ready to get back to work.

For more information or help choosing the right system, call us at 972-921-4316.
